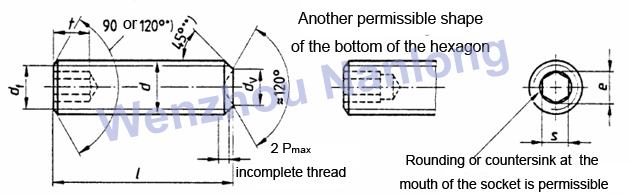

DIN 916 - Socket Set Screws With Cup Point
dimensions in mm Thread d |
M1.4 |
M1.6 |
(M1.8) |
M2 |
M2.5 |
M3 |
M4 |
M5 |
M6 |
M8 |
M10 |
M12 |
(M14) |
M16 |
(M18) |
M20 |
(M22) |
M24 |
P |
0.3 |
0.35 |
0.35 |
0.4 |
0.45 |
0.5 |
0.7 |
0.8 |
1 |
1.25 |
1.5 |
1.75 |
2 |
2 |
2.5 |
2.5 |
2.5 |
3 |
dv |
max. |
0.7 |
0.8 |
0.9 |
1 |
1.2 |
1.4 |
2 |
2.5 |
3 |
5 |
6 |
8 |
9 |
10 |
12 |
14 |
16 |
16 |
min. |
0.45 |
0.55 |
0.65 |
0.75 |
0.95 |
1.15 |
1.75 |
2.25 |
2.75 |
4.7 |
5.7 |
7.64 |
8.64 |
9.64 |
11.57 |
13.57 |
15.57 |
15.57 |
df |
approx. |
Lower limit of minor thread diameter |
e |
min. |
0.803 |
0.803 |
0.803 |
1,003 |
1,427 |
1.73 |
2.3 |
2.87 |
3.44 |
4.58 |
5.72 |
6.86 |
6.86 |
9.15 |
11.43 |
11.43 |
13.72 |
13.72 |
s |
nominal |
0.7 |
0.7 |
0.7 |
0.9 |
1.3 |
1.5 |
2 |
2.5 |
3 |
4 |
5 |
6 |
6 |
8 |
10 |
10 |
12 |
12 |
min. |
0.711 |
0.711 |
0.711 |
0.889 |
1.27 |
1.52 |
2.02 |
2.52 |
3.02 |
4.02 |
5.02 |
6.02 |
6.02 |
8,025 |
10,025 |
10,025 |
12,032 |
12,032 |
max. |
0.724 |
0.724 |
0.724 |
0.902 |
1,295 |
1,545 |
2,045 |
2.56 |
3.08 |
4,095 |
5,095 |
6,095 |
6,095 |
8,115 |
10,115 |
10,115 |
12,142 |
12,142 |
t |
min. |
0.6 |
0.7 |
0.8 |
0.8 |
1.2 |
1.2 |
1.5 |
2 |
2 |
3 |
4 |
4.5 |
5.6 |
6.4 |
7.2 |
8 |
9 |
10 |
min. |
1.4 |
1.5 |
1.6 |
1.7 |
2 |
2 |
2.5 |
3 |
3.5 |
5 |
6 |
8 |
9 |
10 |
11 |
12 |
13.5 |
15 |
