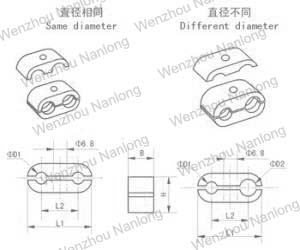

Tube Clamp|Small Win Tube Clamp|China


Range of application vehicle,machine building,metering and controlling equipment,machine tool and cable,hose
Order code:
TTSP-Small win tube clamp,polypropylene
TTSN-Small win tube clamp,polyamide 6
(As required please exchange standard abbreviation "TTSP" in column for "order code")



Clamp Size

OD
d1/d2

Inch
ID

Inch
OD

Order Code

Size

Cover Plate

L1

L2

B

H

Order Code

L4

尺寸

B2

1

6/6
6.4/6.4
8/8

G1/4 G1/4

TTSP - 106
TTSP - 106.4
TTSP - 108

32

18

14.5

13.5

TS - G1

29

15.5

2

8/8
9.5/9.5
10/10
12/12
12.7/12.7

G1/8 G1/8

G3/8 G3/8

G1/2 G1/2

TTSP - 208
TTSP - 209.5
TTSP - 210
TTSP - 212
TTSP - 212.7



41

22

14.5

18.5

TS - G2

40

16

3

10/10
12/12
12.7/12.7
13.5/13.5
14/14
15/15
16/16

G1/8 G1/8
G1/4 G1/4


G1/2 G1/2

G5/8 G5/8


TTSP - 310
TTSP - 312
TTSP - 312.7
TTSP - 313.5
TTSP - 314
TTSP - 315
TTSP - 316

54

30

14.5

23.5

TS - G3

49.5

16

4

14/14
15/15
16/16
17.2/17.2
18/18
19/19
20/20
21.3/21.3
22/22

G3/8 G3/8
G1/2 G1/2

G5/8 G5/8

G3/4 G3/4

TTSP - 414
TTSP - 415
TTSP - 416
TTSP - 417.2
TTSP - 418
TTSP - 419
TTSP - 420
TTSP - 421.3
TTSP - 422

70

38

14.5

30.5

TS - G4

62.5

16



No.21
