TF Tank Mounted Suction Filter

Technical Data

model	Flow(L/min)	Filtr.(μm)	Dia(mm)	Initial△P(MPa)	Indicator		Connection	Weight(Kg)	Model of element
model	Flow(L/min)	Filtr.(μm)	Dia(mm)	Initial△P(MPa)	(V)	(A)	Connection	Weight(Kg)	Model of element
TF(LXZ)-25×*L-C/Y	25	80 100 180	15	＜0.01	12 24 36 220	2.5 2 1.5 0.25	Thread	0.4	TFX(ZX)-25×*
TF(LXZ)-40×*L-C/Y	40		20					0.45	TFX(ZX)-40×*
TF(LXZ)-63×*L-C/Y	63		25					0.82	TFX(ZX)-63×*
TF(LXZ)-100×*L-C/Y	100		32					0.87	TFX(ZX)-100×*
TF(LXZ)-160×*L-C/Y	160		40					1.75	TFX(ZX)-160×*
TF(LXZ)-250×*L-C/Y	250		50				Flange	2.60	TFX(ZX)-250×*
TF(LXZ)-400×*L-C/Y	400		65					4.3	TFX(ZX)-400×*
TF(LXZ)-630×*L-C/Y	630		90					6.2	TFX(ZX)-630×*
TF(LXZ)-800×*L-C/Y	800		90					6.9	TFX(ZX)-800×*

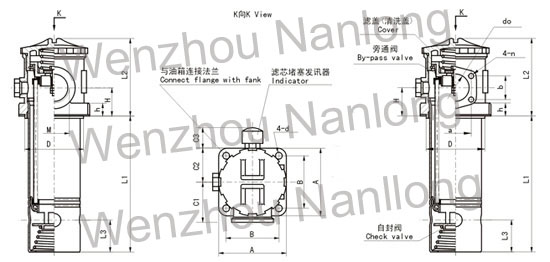

Mounting Size

TF Tank Mounted Suction Filter

TF-25~160

Model	Size(mm)
	L1	L2	L3	H	M	D	A	B	C1	C2	C3	h	4-d
TF-25×* L- C/Y	93	78	36	25	M22×1.5	Ф62	80	60	45	42	42	9.5	Ф9
TF-40×* L- C/Y	110				M27×2
TF-63×* L- C/Y	138	98	40	33	M33×2	Ф75	90	70.7	54	47		10
TF-100×* L- C/Y	188				M42×2
TF-160×* L- C/Y	200	119	53	42	M48×2	Ф91	105	81.3	62	53.5		12	Ф11

TF-250~800

Model	Size(mm)
Model	L1	L2	L3	H	do	D	a	b	4-n	A	B	C1	C2	C3	4-d	h	Q
TF-250×* F- C/Y	270	119	53	42	Ф50	Ф91	70	40	M10	105	81.3	72.5	53.5	42	Ф11	12	Ф60
TF-400×* F- C/Y	275	141	60	50	Ф65	Ф110	90	50		125	95.5	82.5	61			15	Ф73
TF-630×* F- C/Y	325	184	55	65	Ф90	Ф140	120	70		160	130	100	81			15	Ф102

No.5
