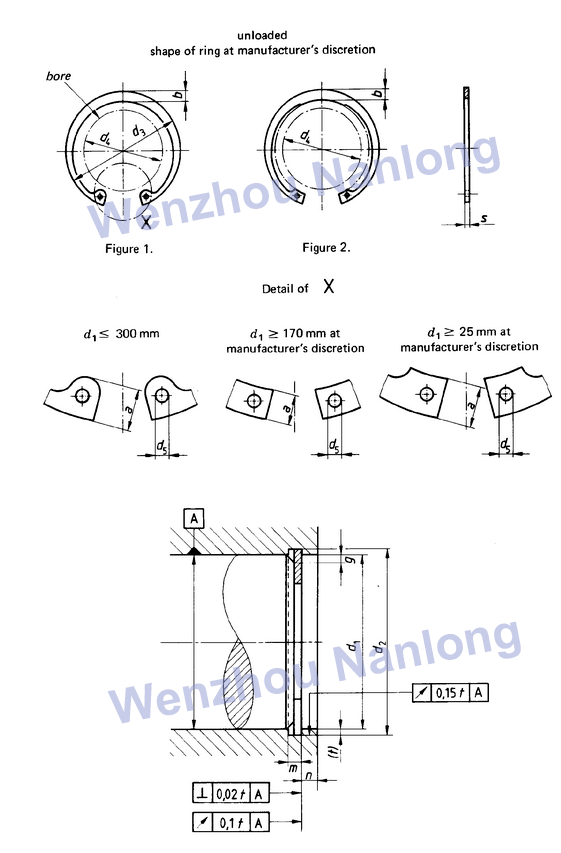

DIN 472 - Internal Retaining Rings

DIN 472 - Internal Retaining Rings



Normal Type


Shaft diameter  d1 Nominal dimension
Clip
Groove
Supplementary data
s
d3
a
b
d5
d2 2)
m3)
t
n
d4
FN
FR
g
FRg
Nominal size of pliers according to DIN5254
　
per. dev.
　
per. dev.
max.
≈
min.
-
per. dev.
H13
min.
Kn
Kn
KN
8
0.8
0/-0.05
8.7
(+)0.36/-0.10
2.4
1.1
1
8.4
(+)0.09 / 0 (H11)
0.9
0.2
0.6
3
0.86
2.00
0.5
1.50
8
9
0.8
9.8
2.5
1.3
1
9.4
0.9
0.2
0.6
3.7
0.96
2.00
0.5
1.50
10
1
0/-0.06
10.8
3.2
1.4
1.2
10.4
(+)0.11 / 0 (H11)
1.1
0.2
0.6
3.3
1.08
4.00
0.5
2.20
11
1
11.8
3.3
1.5
1.2
11.4
1.1
0.2
0.6
4.1
1.17
4.00
0.5
2.30
12
1
13
3.4
1.7
1.5
12.5
1.1
0.25
0.8
4.9
1.6
4.00
0.5
2.30
13
1
14.1
3.6
1.8
1.5
13.6
1.1
0.3
0.9
5.4
2.1
4.20
0.5
2.30
14
1
15.1
3.7
1.9
1.7
14.6
1.1
0.3
0.9
6.2
2.25
4.50
0.5
2.30
15
1
16.2
3.7
2
1.7
15.7
1.1
0.35
1.1
7.2
2.8
5.00
0.5
2.30
16
1
17.3
3.8
2
1.7
16.8
1.1
0.4
1.2
8
3.4
5.50
1
2.60
17
1
18.3
(+)0.42/-0.13
3.9
2.1
1.7
17.8
1.1
0.4
1.2
8.8
3.6
6.00
1
2.50
18
1
19.5
4.1
2.2
2
19
(+)0.13 / 0 (H11)
1.1
0.5
1.5
9.4
4.8
6.50
1
2.60
19
1
20.5
4.1
2.2
2
20
1.1
0.5
1.5
10.4
5.1
6.80
1
2.50
19
20
1
21.5
4.2
2.3
2
21
1.1
0.5
1.5
11.2
5.4
7.20
1
2.50
21
1
22.5
4.2
2.4
2
22
1.1
0.5
1.5
12.2
5.7
7.60
1
2.60
22
1
23.5
4.2
2.5
2
23
1.1
0.5
1.5
13.2
5.9
8.00
1
2.70
24
1.2
25.9
(+)0.42/-0.21
4.4
2.6
2
25.2
(+)0.21 / 0 (H12)
1.3
0.6
1.8
14.8
7.7
13.90
1
4.60
25
1.2
26.9
4.5
2.7
2
26.2
1.3
0.6
1.8
15.5
8
14.60
1
4.70
26
1.2
27.9
4.7
2.8
2
27.2
1.3
0.6
1.8
16.1
8.4
13.85
1
4.60
28
1.2
30.1
(+)0.5/-0.25
4.8
2.9
2
29.4
1.3
0.7
2.1
17.9
10.5
13.30
1
4.50
30
1.2
32.1
4.8
3
2
31.4
(+)0.25 / 0 (H12)
1.3
0.7
2.1
19.9
11.3
13.70
1
4.60
31
1.2
33.4
5.2
3.2
2.5
32.7
1.3
0.85
2.6
20
14.1
13.80
1
4.70
32
1.2
34.4
5.4
3.2
2.5
33.7
1.3
0.85
2.6
20.6
14.6
13.80
1
4.70
34
1.5
36.5
5.4
3.3
2.5
35.7
1.6
0.85
2.6
22.6
15.4
26.20
1.5
6.30
35
1.5
37.8
5.4
3.4
2.5
37
1.6
1
3
23.6
18.8
26.90
1.5
6.40
36
1.5
38.8
5.4
3.5
2.5
38
1.6
1
3
24.6
19.4
26.40
1.5
6.40
37
1.5
39.8
5.5
3.6
2.5
39
1.6
1
3
25.4
19.8
27.10
1.5
6.50
38
1.5
40.8
5.5
3.7
2.5
40
1.6
1
3
26.4
22.5
28.20
1.5
6.70
40
1.75
43.5
(+)0.9/-0.39
5.8
3.9
2.5
42.5
1.85
1.25
3.8
27.8
27
44.60
2
8.30
40
42
1.75
45.5
5.9
4.1
2.5
44.5
1.85
1.25
3.8
29.6
28.4
44.70
2
8.40
45
1.75
48.5
6.2
4.3
2.5
47.5
1.85
1.25
3.8
32
30.2
43.10
2
8.20
47
1.75
50.5
(+)1.1/-0.46
6.4
4.4
2.5
49.5
1.85
1.25
3.8
33.5
31.4
43.50
2
8.30
48
1.75
51.5
6.4
4.5
2.5
50.5
(+)0.30 / 0 (H12)
1.85
1.25
3.8
34.5
32
43.20
2
8.40
50
2
0/-0.07
54.2
6.5
4.6
2.5
53
2.15
1.5
4.5
36.3
40.5
60.80
2
12.10
52
2
56.2
6.7
4.7
2.5
55
2.15
1.5
4.5
37.9
42
60.25
2
12.00
55
2
59.2
6.8
5
2.5
58
2.15
1.5
4.5
40.7
44.4
60.30
2
12.50
56
2
60.2
6.8
5.1
2.5
59
2.15
1.5
4.5
41.7
45.2
60.30
2
12.60
58
2
62.2
6.9
5.2
2.5
61
2.15
1.5
4.5
43.5
46.7
60.80
2
12.70
60
2
64.2
7.3
5.4
2.5
63
2.15
1.5
4.5
44.7
48.3
61.00
2
13.00
62
2
66.2
7.3
5.5
2.5
65
2.15
1.5
4.5
46.7
49.8
60.90
2
13.00
63
2
67.2
7.3
5.6
2.5
66
2.15
1.5
4.5
47.7
50.6
60.80
2
13.00
65
2.5
69.2
7.6
5.8
3
68
2.65
1.5
4.5
49
51.8
121.00
2.5
20.80
68
2.5
72.5
7.8
6.1
3
71
2.65
1.5
4.5
51.6
54.5
121.50
2.5
21.20
70
2.5
74.5
7.8
6.2
3
73
2.65
1.5
4.5
53.6
56.2
119.00
2.5
21.00
72
2.5
76.5
7.8
6.4
3
75
2.65
1.5
4.5
55.6
58
119.20
2.5
21.00
75
2.5
79.5
7.8
6.6
3
78
2.65
1.5
4.5
58.6
60
118.00
2.5
21.00
78
2.5
82.5
(+)1.3/-0.54
8.5
6.8
3
81
(+)0.35 / 0 (H12)
2.65
1.5
4.5
60.1
62.3
122.5
2.5
21.80
80
2.5
85.5
8.5
7
3
83.5
2.65
1.75
5.3
62.1
74.6
120.9
2.5
21.80
82
2.5
87.5
8.5
7
3
85.5
2.65
1.75
5.3
64.1
74.6
119
2.5
21.40
85
3
0/-0.08
90.5
8.6
7.2
3.5
88.5
3.15
1.75
5.3
66.9
79.5
201.4
3
31.20
80
88
3
93.5
8.6
7.4
3.5
91.5
3.15
1.75
5.3
69.9
82.1
209.4
3
32.70
90
3
95.5
8.6
7.6
3.5
93.5
3.15
1.75
5.3
71.9
84.0
199
3
31.40
92
3
97.5
8.7
7.8
3.5
95.5
3.15
1.75
5.3
73.7
85.8
201
3
32.00
95
3
100.5
8.8
8.1
3.5
98.5
3.15
1.75
5.3
76.5
88.6
195
3
31.40
98
3
103.5
9
8.3
3.5
101.5
3.15
1.75
5.3
79
91.3
191
3
31.00
100
3
105.5
9.2
8.4
3.5
103.5
3.15
1.75
5.3
80.6
93.1
188
3
30.80
102
4
0/-0.1
108
9.5
8.5
3.5
106
(+)0.54 / 0 (H13)
4.15
2
6
82
108.8
439
3
72.60
105
4
112
9.5
8.7
3.5
109
4.15
2
6
85
112
436
3
73.00
108
4
115
9.5
8.9
3.5
112
4.15
2
6
88
115
419
3
71.00
110
4
117
10.4
9
3.5
114
4.15
2
6
88.2
117
415
3
71.00
112
4
119
10.5
9.1
3.5
116
4.15
2
6
90
119
418
3
72
115
4
122
(+)1.5/-0.63
10.5
9.3
3.5
119
4.15
2
6
93
122
409
3
71.20
120
4
127
11
9.7
3.5
124
(+)0.63 / 0 (H13)
4.15
2
6
96.9
127
396
3
70.00
125
4
132
11
10
4
129
4.15
2
6
101.9
132
385
3
70.00
125
130
4
137
11
10.2
4
134
4.15
2
6
106.9
138
374
3
69.00
135
4
142
11.2
10.5
4
139
4.15
2
6
111.5
143
358
3
67.00
140
4
147
11.2
10.7
4
144
4.15
2
6
116.5
148
350
3
66.50
145
4
152
11.4
10.9
4
149
4.15
2
6
121
153
336
3
65.00
150
4
158
12
11.2
4
155
4.15
2.5
7.5
124.8
191
326
3
64.00
155
4
164
12
11.4
4
160
4.15
2.5
7.5
129.8
206
324
3.5
55.00
160
4
169
13
11.6
4
165
4.15
2.5
7.5
132.7
212
321
3.5
54.50
165
4
174.5
13
11.8
4
170
4.15
2.5
7.5
137.7
219
319
3.5
54.00
170
4
179.5
13.5
12.2
4
175
4.15
2.5
7.5
141.6
225
349
3.5
59.00
175
4
184.5
(+)1.70/-0.72
13.5
12.7
4
180
4.15
2.5
7.5
146.6
232
351
3.5
59.00
180
4
189.5
14.2
13.2
4
185
(+)0.72 / 0 (H13)
4.15
2.5
7.5
150.2
238
347
3.5
58.50
185
4
194.5
14.2
13.7
4
190
4.15
2.5
7.5
155.2
245
349
3.5
59.00
190
4
199.5
14.2
13.8
4
195
4.15
2.5
7.5
160.2
251
340
3.5
57.50
195
4
204.5
14.2
13.8
4
200
4.15
2.5
7.5
165.2
258
330
3.5
55.50
200
4
209.5
14.2
14
4
205
4.15
2.5
7.5
170.2
265
325
3.5
55.00
210
5
0/-0.12
222
14.2
14
4
216
5.15
3
9
180.2
333
601
4
89.50
220
5
232
14.2
14
4
226
5.15
3
9
190.2
349
574
4
85.00
230
5
242
14.2
14
4
236
5.15
3
9
200.2
365
549
4
81.00
240
5
252
(+)2.0/-0.81
14.2
14
4
246
5.15
3
9
210.2
380
525
4
77.50
250
5
262
14.2
14
4
256
(+)0.81 / 0 (H13)
5.15
3
9
220.2
396
504
4
75.00
260
5
275
16.2
16
4
268
5.15
4
12
226
553
538
4
80.00
270
5
285
16.2
16
5
278
5.15
4
12
236
573
518
4
77.00
280
5
295
16.2
16
5
288
5.15
4
12
246
593
499
4
74.00
290
5
305
16.2
16
5
298
5.15
4
12
256
615
482
4
71.50
300
5
315
16.2
16
5
308
5.15
4
12
266
636
466
4
69.00




Heavy Type


Bore diameter  d1 Nominal dimension
Clip
Groove
Supplementary data
s
d3
a
b
d5
d2 2)
m3)
t
n
d4
FN
FR
g
FRg
Nominal size of pliers according to DIN5254
　
per. dev.
　
per. dev.
max.
≈
min.
-
per. dev.
H13
min.
Kn
Kn
KN
20
1.5
0/-0.06
21.5
(+)0.42/-0.21
4.5
2.4
2
21
(+)0.13 / 0 (H11)
1.6
0.5
1.5
10.5
5.4
16.0
1
5.60
19
22
1.5
23.5
4.7
2.8
2
23
1.6
0.5
1.5
12.1
5.9
18.0
1
6.10
24
1.5
25.9
4.9
3
2
25.2
1.6
0.6
1.8
13.7
7.7
21.7
1
7.20
25
1.5
26.9
5
3.1
2
26.2
(+)0.21 / 0 (H12)
1.6
0.6
1.8
14.5
8
22.8
1
7.30
26
1.5
27.9
5.1
3.1
2
27.2
1.6
0.6
1.8
15.3
8.4
21.6
1
7.20
28
1.5
30.1
(+)0.50/-0.25
5.3
3.2
2
29.4
1.6
0.7
2.1
16.9
10.5
20.8
1
7.00
30
1.5
32.1
5.5
3.3
2
31.4
(+)0.25 / 0 (H12)
1.6
0.7
2.1
18.4
11.3
21.4
1
7.20
32
1.5
34.4
5.7
3.4
2
33.7
1.6
0.85
2.6
20
14.6
21.4
1
7.30
34
1.75
36.5
5.9
3.7
2.5
35.7
1.85
0.85
2.6
21.6
15.4
35.6
1.5
8.60
35
1.75
37.8
6
3.8
2.5
37
1.85
1
3
22.4
18.8
36.6
1.5
8.70
37
1.75
39.8
6.2
3.9
2.5
39
1.85
1
3
24
19.8
36.8
1.5
8.80
38
1.75
40.8
6.3
3.9
2.5
40
1.85
1
3
24.7
22.5
38.3
1.5
9.10
40
2
0/-0.7
43.5
(+)0.9/-0.39
6.5
3.9
2.5
42.5
2.15
1.25
3.8
26.3
27
58.4
2
10.90
40
42
2
45.5
6.7
4.1
2.5
44.5
2.15
1.25
3.8
27.9
28.4
58.5
2
11.00
45
2
48.5
7
4.3
2.5
47.5
2.15
1.25
3.8
30.3
30.2
56.5
2
10.70
47
2
50.5
(+)1.10/-0.46
7.2
4.4
2.5
49.5
2.15
1.25
3.8
31.9
31.4
57.0
2
10.80
50
2.5
54.2
7.5
4.6
2.5
53
(+)0.30 / 0 (H12)
2.65
1.5
4.5
34.2
40.5
95.5
2
19.00
52
2.5
56.2
7.7
4.7
2.5
55
2.65
1.5
4.5
35.8
42
94.6
2
18.80
55
2.5
59.2
8
5
2.5
58
2.65
1.5
4.5
38.2
44.4
94.7
2
19.60
60
3
0/-0.08
64.2
8.5
5.4
2.5
63
3.15
1.5
4.5
42.1
48.3
137.0
2
29.20
62
3
66.2
8.6
5.5
2.5
65
3.15
1.5
4.5
43.9
49.8
137.0
2
29.20
65
3
69.2
8.7
5.8
3
68
3.15
1.5
4.5
46.7
51.8
174.0
2.5
30.00
68
3
72.5
8.8
6.1
3
71
3.15
1.5
4.5
49.5
54.5
174.5
2.5
30.60
70
3
74.5
9
6.2
3
73
3.15
1.5
4.5
51.1
56.2
171.0
2.5
30.30
72
3
76.5
9.2
6.4
3
75
3.15
1.5
4.5
52.7
58
172.0
2.5
30.30
75
3
79.5
9.3
6.6
3
78
3.15
1.5
4.5
55.5
60
170.0
2.5
30.30
80
4
0/-0.1
85.5
(+)1.3/-0.54
9.5
7
3
83.5
(+)0.35 / 0 (H12)
4.15
1.75
5.3
60
74.6
308.0
2.5
56.00
85
4
90.5
9.7
7.2
3.5
88.5
4.15
1.75
5.3
64.6
79.5
358.0
3
55.00
85
90
4
95.5
10
7.6
3.5
93.5
4.15
1.75
5.3
69
84
354.0
3
56.00
95
4
100.5
10.3
8.1
3.5
98.5
4.15
1.75
5.3
73.4
88.6
347.0
3
56.00
100
4
105.5
10.5
8.4
3.5
103.5
4.15
1.75
5.3
78
93.1
335.0
3
55.00


DIN 401-500
DIN 404 - Slotted Drilled Fillister Head Screws
DIN 417 - Slotted set screws with full dog point
DIN 427 - Slotted Headless Screws
DIN 431 - Jam Nut, Hexagonal
DIN 432 - External Tab Washer
DIN 433 - Flat Washer With Reduced O.D.
DIN 434 - Square Bevel Washer: 8%
DIN 435 - Square Bevel Washer: 14%
DIN 436 - Square Washer
DIN 438 - Slotted set screws with cup point
DIN 439 A - Hexagon Nuts - 0,5d Unchamfered
DIN 439 B - Hexagon Nuts - 0,5d Chamfered
DIN 444 A - Eye Bolts
DIN 462 - Internal Tab Washers
DIN 463 - Tab Washers With Long And Short Tab
DIN 464 - Knurled Thumb Screws
DIN 466 - Knurled Nuts, Full
DIN 467 - Flat Knurled Nuts
DIN 470 - Sealing Washers
DIN 471 - External Retaining Rings
DIN 472 - Internal Retaining Rings
DIN 478 - Square Head Bolts
DIN 479 - Square Head Bolts
DIN 480 - Square Head Bolts

Company| Catalogue|About Steel| Inventory(Stock) | Contact Us|SiteMape|Search|Link
Copyrights©Wenzhou Nanlong Import&Export Trading CO.,LTD.(China), All rights reserved
WWW.Nan-Long.Com (DIN FASTENER|DIN 472 - Internal Retaining Rings)

This Website describes DIN standard Fastener in China.Wenzhou Nanlong Import & Export Trading CO.,LTD.(China)-There are DIN 472 - Internal Retaining Rings.And the the material are stainless steel (TP304-18-8,316,316L,310S.309S..317L.347H,904L...),carbon steel (C1018 C1022),aluminium,brass and so no.

DIN 472 - Internal Retaining Rings
