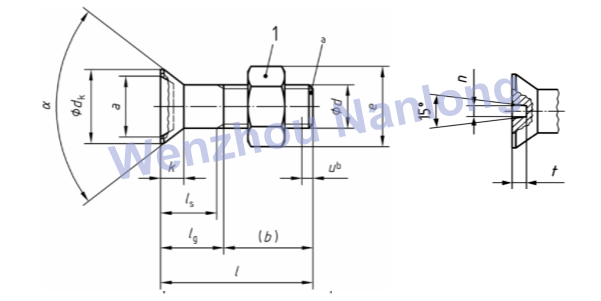

DIN 7969 - Slotted countersunk head bolts with hexagon nut for steel structures

DIN 7969 - Slotted countersunk head bolts with hexagon nut for steel structures

d
M12
M16
M20
M24
P
1.75
2
2.5
3
α
75。(+5。/ - 0。)
60。(+5。/ - 0。)
a
min.
13.7
18.6
21.4
25.6
max.
14.7
19.6
22.4
26.6
b
b
22
28
32
38
c
28
35
40
50
dk
max. =
21
28
32
38
min.
20.48
27.48
31.38
37.38
ds
nominal size
12
16
20
24
min.
11.3
15.3
19.16
23.16
max.
12.7
16.7
20.84
24.84
e min.
19.85
26.17
32.95
39.55
k
nominal size
7
9
11.5
13
min.
6.71
8.71
11.15
12.65
max.
7.29
9.29
11.85
13.35
n
nominal size
2.5
2.5
3
3
t
max.
3
3
3.5
3.5
min
3
3
3.5
3.5
l

ls
lg
ls
lg
ls
lg
ls
lg
nominal size
min.
max.
min.
max.
min.
max.
min.
max.
min.
max.
35
33.75
36.25

15.75






40
38.75
41.25
9.25
18






45
43.75
46.25
14.25
23

19




50
48.75
51.25
19.25
28
12
22

24


55
53.5
56.5
24.25
33
17
27

24


60
58.5
61.5
29.25
38
22
32
15.5
28

28
65
63.5
66.5
28.25
37
27
37
20.5
33

28
70
68.5
71.5
33.25
42
32
42
25.5
38
17
32
75
73.5
76.5
38.25
47
37
47
30.5
43
22
37
80
78.5
81.5
43.25
52
42
52
35.5
48
27
42
90
88.25
91.75
53.25
62
45
55
37.5
50
25
40
100
98.25
101.75
63.25
72
55
65
47.5
60
35
50
110
108.25
111.75
73.25
82
65
75
57.5
70
45
60
120
118.25
121.75
83.25
92
75
85
67.5
80
55
70
130
129
132
93.25
102
85
95
77.5
90
65
80
140
138
142
103.25
112
95
105
87.5
100
75
90
150
148
152
113.25
122
105
115
97.5
110
85
100
160
158
162
123.25
132
115
125
107.5
120
95
110
