ASME B18.5 Flat Countersunk Head Elevator Bolts

ASME B18.5 Flat Countersunk Head Elevator Bolts

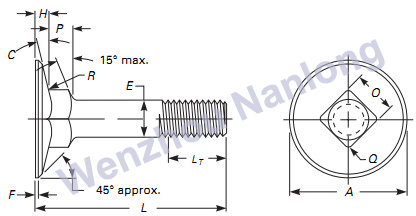

Dimensions of Flat Countersunk Head Elevator Bolts (Inch)

Nominal Size
or Basic Bolt
Diameter
[Note (1)]
Body Diameter, E

Head Diameter, A
Head Angle,C(Ref.)
Max. Flat on Min. Dia. Head,F
Head Height, H

Square Width, O

Square Depth,P

Maximum Corner Radius on Square,Q
Maximum Fillet Radius,R[Note(2)]
Max.
Min.
Max. Edge Sharp
Min. Edge Sharp
Min. Edge Flat
Max.
Min.
Max.
Min.
Max.
Min.
No.10
0.19
0.199
0.182
0.79
0.75
0.74
9
0.025
0.082
0.062
0.21
0.185
0.125
0.094
0.031
0.031
1/4
0.25
0.26
0.237
1.008
0.969
0.938
9
0.035
0.098
0.078
0.28
0.245
0.219
0.188
0.031
0.031
5/16
0.3125
0.324
0.298
1.227
1.188
1.157
9
0.035
0.114
0.094
0.342
0.307
0.25
0.219
0.031
0.031
3/8
0.375
0.388
0.36
1.352
1.312
1.272
11
0.04
0.145
0.125
0.405
0.368
0.25
0.219
0.047
0.031
7/16
0.4375
0.452
0.421
1.477
1.438
1.397
13
0.04
0.176
0.156
0.468
0.431
0.281
0.25
0.047
0.031
1/2
0.5
0.515
0.483
1.602
1.562
1.522
12
0.04
0.176
0.156
0.53
0.492
0.281
0.25
0.047
0.031


GENERAL NOTE: For additional requirements, refer to section 2, General Data.
NOTES:
(1) Where specifying nominal size in decimals, zeros preceding decimal and in the four th decimal place shall be omitted.
(2) The minimum radius is one half of the value shown.
