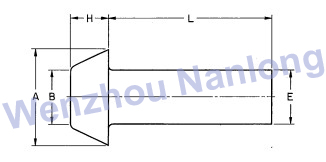

ASME B18.1.2 Pan Countersunk Head Rivets
Nominal Size 1 or Basic Shank Diameter |
E |
A |
B |
H |
|||||||
Shank Diameter |
Major Head Diameter |
Major Head Diameter |
Head Height |
||||||||
Max |
Min |
Basic |
Max |
Min |
Basic |
Max |
Min |
Max |
Min (Basic) |
||
1/2 |
0.500 |
0.520 |
0.478 |
0.800 |
0.863 |
0.769 |
0.500 |
0.563 |
0.469 |
0.381 |
0.350 |
5/8 |
0.625 |
0.655 |
0.600 |
1.000 |
1.063 |
0.969 |
0.625 |
0.688 |
0.594 |
0.469 |
0.438 |
3/4 |
0.750 |
0.780 |
0.725 |
1.200 |
1.278 |
1.169 |
0.750 |
0.828 |
0.719 |
0.556 |
0.525 |
7/8 |
0.875 |
0.905 |
0.850 |
1.400 |
1.478 |
1.369 |
0.875 |
0.953 |
0.844 |
0.643 |
0.612 |
1 |
1.000 |
1.030 |
0.975 |
1.600 |
1.678 |
1.569 |
1.000 |
1.078 |
0.969 |
0.731 |
0.700 |
1 1/8 |
1.125 |
1.160 |
1.098 |
1.800 |
1.894 |
1.769 |
1.125 |
1.219 |
1.094 |
0.835 |
0.788 |
1 1/4 |
1.250 |
1.285 |
1.223 |
2.000 |
2.094 |
1.969 |
1.250 |
1.344 |
1.219 |
0.922 |
0.875 |
1 3/8 |
1.375 |
1.415 |
1.345 |
2.200 |
2.294 |
2.169 |
1.375 |
1.469 |
1.344 |
1.009 |
0.920 |
1 1/2 |
1.500 |
1.540 |
1.470 |
2.400 |
2.494 |
2.369 |
1.500 |
1.594 |
1.469 |
1.113 |
1.050 |
1 5/8 |
1.625 |
1.665 |
1.588 |
2.600 |
2.694 |
2.569 |
1.625 |
1.719 |
1.594 |
1.201 |
1.138 |
1 3/4 |
1.750 |
1.790 |
1.713 |
2.800 |
2.909 |
2.769 |
1.750 |
1.859 |
1.719 |
1.288 |
1.225 |
