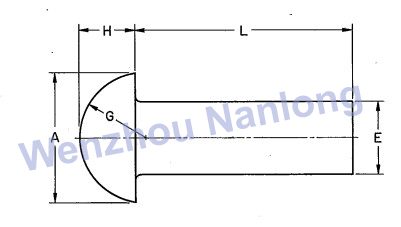

ASME B18.1.2 Button Head Rivets
Nominal Size 1 or Basic Shank Diameter |
E |
A |
H |
G |
|||||
Shank Diameter |
Head Diameter |
Head Height |
Head Radius |
||||||
Max |
Min |
Basic |
Max |
Min |
Max |
Min (Basic) |
Basic |
||
1/2 |
0.500 |
0.520 |
0.478 |
0.875 |
0.938 |
0.844 |
0.406 |
0.375 |
0.443 |
5/8 |
0.625 |
0.655 |
0.600 |
1.094 |
1.157 |
1.063 |
0.500 |
0.469 |
0.553 |
3/4 |
0.750 |
0.780 |
0.725 |
1.312 |
1.390 |
1.281 |
0.593 |
0.562 |
0.664 |
7/8 |
0.875 |
0.905 |
0.850 |
1.531 |
1.609 |
1.500 |
0.687 |
0.656 |
0.775 |
1 |
1.000 |
1.030 |
0.975 |
1.750 |
1.828 |
1.719 |
0.781 |
0.750 |
0.885 |
1 1/8 |
1.125 |
1.160 |
1.098 |
1.969 |
2.063 |
1.938 |
0.891 |
0.844 |
0.996 |
1 1/4 |
1.250 |
1.285 |
1.223 |
2.188 |
2.282 |
2.157 |
0.985 |
0.938 |
1.107 |
1 3/8 |
1.375 |
1.415 |
1.345 |
2.406 |
2.500 |
2.375 |
1.078 |
1.031 |
1.217 |
1 1/2 |
1.500 |
1.540 |
1.470 |
2.625 |
2.719 |
2.594 |
1.189 |
1.125 |
1.328 |
1 5/8 |
1.625 |
1.665 |
1.588 |
2.844 |
2.938 |
2.813 |
1.282 |
1.219 |
1.439 |
1 3/4 |
1.750 |
1.790 |
1.713 |
3.062 |
3.171 |
3.031 |
1.375 |
1.312 |
1.549 |
