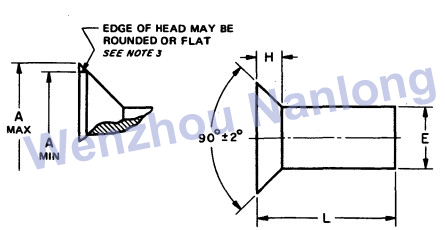

ASME B18.1.1 Flat Countersunk Head Rivets
Nominal Size 1 or Basic Shank Diameter |
E |
A |
H |
||||
Shank Diameter |
Head Diameter |
Head Height |
|||||
Max |
Min |
Max2 |
Min3 |
Ref4 |
|||
1/16 |
0.062 |
0.064 |
0.059 |
0.118 |
0.110 |
0.027 |
|
3/32 |
0.094 |
0.096 |
0.090 |
0.176 |
0.163 |
0.040 |
|
1/8 |
0.125 |
0.127 |
0.121 |
0.235 |
0.217 |
0.053 |
|
5/32 |
0.156 |
0.158 |
0.152 |
0.293 |
0.272 |
0.066 |
|
3/16 |
0.188 |
0.191 |
0.182 |
0.351 |
0.326 |
0.079 |
|
7/32 |
0.219 |
0.222 |
0.213 |
0.413 |
0.384 |
0.094 |
|
1/4 |
0.250 |
0.253 |
0.244 |
0.469 |
0.437 |
0.106 |
|
9/32 |
0.281 |
0.285 |
0.273 |
0.528 |
0.491 |
0.119 |
|
5/16 |
0.312 |
0.316 |
0.304 |
0.588 |
0.547 |
0.133 |
|
11/32 |
0.344 |
0.348 |
0.336 |
0.646 |
0.602 |
0.146 |
|
3/8 |
0.375 |
0.380 |
0.365 |
0.704 |
0.656 |
0.159 |
|
13/32 |
0.406 |
0.411 |
0.396 |
0.763 |
0.710 |
0.172 |
|
7/16 |
0.438 |
0.443 |
0.428 |
0.823 |
0.765 |
0.186 |
|
